Phase out Legacy Authentication - The next 9%

Blog series

This is part three of the six-part series on “Phase out Legacy Authentication”.

1. Preface
2. Enable Modern Authentication
3. Create prerequisites
4. Gain insights
5. The first 90%
6. The next 9%
7. Endgame

Recap

Having disabled the majority of users who do not use Legacy Authentication in the last article, it is now time to use the methods outlined in part three to identify the user groups that are still affected.

This data will be used to create an action plan for the deactivation of Legacy Authentication for these user groups. Additionally, the data will be used to transition the Conditional Access Policy “Temporary Policy: Block legacy authentication rollout” to Phase 2.

User groups

Outlook

Outlook supports Modern Authentication starting with Outlook 2013 (Windows) or Outlook 2016 for Mac. All older versions do not support Modern Authentication and must be updated.

Outlook 2010

If Office 2010 is still used in the field, a migration project must be started and carried out. Especially when using macros and addons, this can be a very extensive undertaking. If a deactivation of legacy authentication is necessary before the migration of Office, Outlook on the Web can be used as an alternative.

Identify users

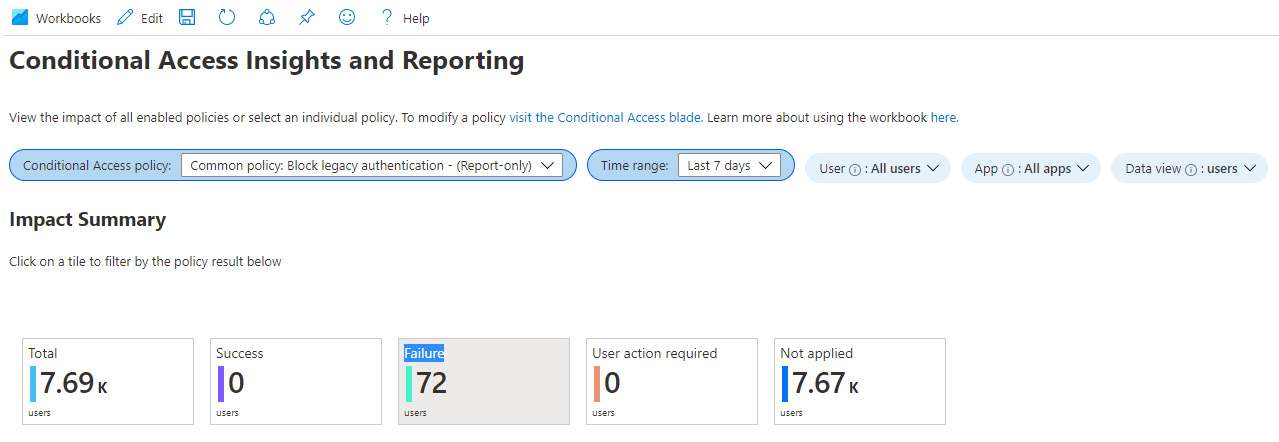

The provided workbooks “Sign-ins using Legacy Auth” and “Conditional Access Insights and Reporting” are of very little help for the planned report. The most important information, the client used (UserAgent), is missing from the report.

Therefore, we use Kusto in order to directly query the underlying data of the workbooks .

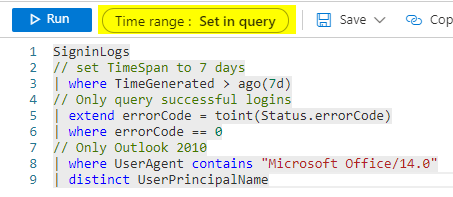

In the Azure Portal, select “Azure Active Directory” and in the Monitoring section, select “Logs” and insert and execute the following query. Make sure that the time period of the query is set to “Set in query”.

1
2
3
4
5
6
7
8
9

SigninLogs
// set TimeSpan to 7 days
| where TimeGenerated > ago(7d)
// Only query successful logins
| extend errorCode = toint(Status.errorCode)
| where errorCode == 0
// Only Outlook 2010
| where UserAgent contains "Microsoft Office/14.0"
| distinct UserPrincipalName

The query outputs a list with all persons who still use Outlook 2010 (internal version number 14.0).

If there is a risk that older versions of Outlook are still in use, the version number in the query can be adjusted accordingly.

7
8

// Only Outlook 2010 and before
| where UserAgent contains "Microsoft Office/14.0" or UserAgent contains "Microsoft Office/12.0" or UserAgent contains "Microsoft Office/11.0"

Action Plan

• Add affected users to the CAPolicy-Exclude-Block-Legacy-Authentication group.
• Initiate rollout of a current Office version
• Examine alternatives: Outlook on the Web
• Remove migrated users from CAPolicy-Exclude-Block-Legacy-Authentication group

Outlook 2013

In Outlook 2013, Modern Authentication is not the default and must be enabled via registry key.

If possible, a group policy should be created and distributed to the affected users. Since this is not a standard setting in the group policies, the two registry keys must be added manually.

Alternatively, the values can be set to via script.

$RegistryPath = "HKCU:\Software\Microsoft\Office\15.0\Common\Identity"
if ( -not ( Get-Item $RegistryPath -ErrorAction SilentlyContinue) ) {
    New-Item $RegistryPath -Force | Out-Null
}
New-ItemProperty $RegistryPath -Name Version -PropertyType DWORD -Value 1 -Force | Out-Null
New-ItemProperty $RegistryPath -Name EnableADAL -PropertyType DWORD -Value 1 -Force | Out-Null

Identify users

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

SigninLogs
// set TimeSpan to 7 days
| where TimeGenerated > ago(7d)
// Only query successful logins
| extend errorCode = toint(Status.errorCode)
| where errorCode == 0
// Check if ClientAppUsed is considered Legacy Auth - Empty is not considered Legacy Auth
| extend ClientAppUsed = iff(isempty(ClientAppUsed) == true, "Unknown", ClientAppUsed)
| extend isLegacyAuth = case(ClientAppUsed contains "Browser", "No", ClientAppUsed contains "Mobile Apps and Desktop clients", "No", ClientAppUsed contains "Exchange ActiveSync", "Yes", ClientAppUsed contains "Unknown", "Unknown", "Yes")
| where isLegacyAuth == "Yes"
// Only Outlook 2013
| where UserAgent contains "Microsoft Office/15.0"
| distinct UserPrincipalName

Action Plan

• Add affected users to the CAPolicy-Exclude-Block-Legacy-Authentication group.
• Rollout of the group policy settings
• After one week check if the group policies show the desired success
• Remove migrated users from CAPolicy-Exclude-Block-Legacy-Authentication group

Microsoft 365 Apps for Enterprise, Outlook 2016 und später

Modern Authentication is enabled by default and no further action is required.

Exchange ActiveSync

For Exchange ActiveSync, the best alternative is to switch to Outlook for iOS and Android.
The advantage of switching to the Outlook app, as opposed to other Modern Auth enabled clients, is that other Microsoft 365 features can be used later.

This includes e.g.

• App protection policies
• Sensitivity labeling and protection
• Azure Rights Management data protection

More information about this can be found in the FAQ.

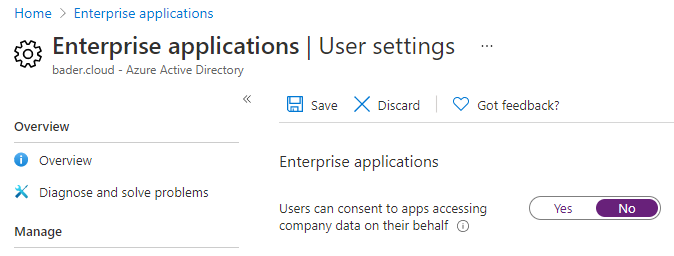

Native apps like iOS Mail and GMail must be explicitly approved before use if users do not have the right to approve apps themselves.

There is an alternative way to deactivate this group of users. By using another Conditional Access Policy only Exchange ActiveSync can be explicitly blocked. This way, users who have Outlook 2010 and Exchange ActiveSync will not be prematurely removed from the exception group.

However, this path is optional and not required for deactivation.

Identify users

1
2
3
4
5
6
7

SigninLogs
| where TimeGenerated > ago(7d)
// Only query successful logins
| extend errorCode = toint(Status.errorCode)
| where errorCode == 0
| where ClientAppUsed == "Exchange ActiveSync"
| distinct UserPrincipalName

After the users have been identified, they must be informed about the change.

When communicating, a two-stage notification by e-mail is recommended.

First email

The first email will be sent one week before the deactivation and will contain the necessary documentation for the migration, e.g. for the installation and setup of the Outlook for iOS and Android app.

To make the switch to Outlook for mobile as easy as possible Microsoft offers cheat sheets for these products. These documents summarize the core functions of Outlook on two pages. If desired, these can also be included in the communication.

• Cheat sheet Outlook for iOS
• Cheat sheet Outlook for Android

Reminder email

The second email serves as a final reminder and will be sent one day before the deactivation.

Also inform your 1st level support so that they can identify the use of an ActiveSync client in case of the error message below and advise the use to install Outlook for iOS and Android.

Action Plan

• Add affected users to the CAPolicy-Exclude-Block-Legacy-Authentication group.
• Optional: Conditional Access Policy “Temporary Policy: Block ActiveSync clients” anlegen
• First communication to users approx. 1 week before deactivation
• The day before deactivation, send the reminder email
• Default: Remove users from the CAPolicy-Exclude-Block-Legacy-Authentication group on the communicated date.
• Optional: Activate the conditional access policy “Temporary Policy: Block ActiveSync clients” on the communicated date.

POP3 and IMAP clients

Users of POP3 and IMAP clients should also be advised of the alternative Outlook for iOS and Android.

However, with these protocols it is not unusual for a service user to access a mailbox in order to further process e-mails. In this case, an customization of the software is necessary. Until this customization has been performed, the user must remain in the CAPolicy-Exclude-Block-Legacy-Authentication group.

Identify users

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

SigninLogs
// set TimeSpan to 7 days
| where TimeGenerated > ago(7d)
// Only query successful logins
| extend errorCode = toint(Status.errorCode)
| where errorCode == 0
// Check if ClientAppUsed is considered Legacy Auth - Empty is not considered Legacy Auth
| extend ClientAppUsed = iff(isempty(ClientAppUsed) == true, "Unknown", ClientAppUsed)
| extend isLegacyAuth = case(ClientAppUsed contains "Browser", "No", ClientAppUsed contains "Mobile Apps and Desktop clients", "No", ClientAppUsed contains "Exchange ActiveSync", "Yes", ClientAppUsed contains "Unknown", "Unknown", "Yes")
| where isLegacyAuth == "Yes"
| where ClientAppUsed in ("POP3","IMAP4")
| distinct UserPrincipalName, ClientAppUsed

In addition to the user name, the protocol used is also included.

Action Plan

• Add affected users to the CAPolicy-Exclude-Block-Legacy-Authentication group.
• First communication to users approx. 1 week before deactivation
• The day before deactivation, send the reminder email
• Remove users from the CAPolicy-Exclude-Block-Legacy-Authentication group on the communicated date.

SMTP Clients

For SMTP clients, an modification of the client or the method is necessary in any case.

Customization of the client app possible

If the client app was developed in-house and is still actively maintained, it is a good idea to switch to SMTP AUTH with OAuth 2.0 support.

Client app cannot be customized

In many cases, it will unfortunately come down to the fact that a customization of the client app is not possible and you can only set the parameters for authentication and the server.

Internal recipients

If only mailboxes in the own tenant have to be reached, the unauthenticated sending via the server tenantdomain.mail.protection.outlook.com is the simplest alternative.

To prevent the mails from ending up in the spam folder of the users, the sending public IP address must be maintained in the DNS as part of the SPF entry. e.g.

"v=spf1 ip4:12.34.56.78 include:spf.protection.outlook.com -all"

To check the changes you can use e.g. the Google Admin Toolbox.

Mail recipients internal and external

If external recipients also need to be written to, the above implementation is not sufficient. An Exchange Connector must be set up.

However, the adaptation of the SPF is necessary in any case.

Identify users

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

SigninLogs
// set TimeSpan to 7 days
| where TimeGenerated > ago(7d)
// Only query successful logins
| extend errorCode = toint(Status.errorCode)
| where errorCode == 0
// Check if ClientAppUsed is considered Legacy Auth - Empty is not considered Legacy Auth
| extend ClientAppUsed = iff(isempty(ClientAppUsed) == true, "Unknown", ClientAppUsed)
| extend isLegacyAuth = case(ClientAppUsed contains "Browser", "No", ClientAppUsed contains "Mobile Apps and Desktop clients", "No", ClientAppUsed contains "Exchange ActiveSync", "Yes", ClientAppUsed contains "Unknown", "Unknown", "Yes")
| where isLegacyAuth == "Yes"
| where ClientAppUsed contains "Authenticated SMTP"
| distinct UserPrincipalName

Action Plan

• Add affected users to the CAPolicy-Exclude-Block-Legacy-Authentication group.
• Implement Microsofts mail flow best pratices
• Remove migrated users from CAPolicy-Exclude-Block-Legacy-Authentication group

Other client applications

The use cases mentioned above should apply to the majority of the remaining users. For all other users, it is necessary to check together with the user which application is still using legacy authentication in order to replace it.

There is no blueprint for this procedure. However, the UserAgent gives a good indication of the application used.

Examples are e.g.

Identify users

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

SigninLogs
// set TimeSpan to 7 days
| where TimeGenerated > ago(7d)
// Only query successful logins
| extend errorCode = toint(Status.errorCode)
| where errorCode == 0
// Check if ClientAppUsed is considered Legacy Auth - Empty is not considered Legacy Auth
| extend ClientAppUsed = iff(isempty(ClientAppUsed) == true, "Unknown", ClientAppUsed)
| extend isLegacyAuth = case(ClientAppUsed contains "Browser", "No", ClientAppUsed contains "Mobile Apps and Desktop clients", "No", ClientAppUsed contains "Exchange ActiveSync", "Yes", ClientAppUsed contains "Unknown", "Unknown", "Yes")
| where isLegacyAuth == "Yes"
| where ClientAppUsed !in ("IMAP4","POP3","Authenticated SMTP", "Exchange ActiveSync")
// Exclude old Office versions
| where UserAgent !contains "Microsoft Office"
// BITS is used for Offline Address Book in older Office versions
| where UserAgent !contains "BITS"
| distinct ClientAppUsed, AppDisplayName, UserAgent, UserPrincipalName

Action Plan

• Add affected users to the CAPolicy-Exclude-Block-Legacy-Authentication group.
• Check the migration options together with the user
• Remove migrated users from CAPolicy-Exclude-Block-Legacy-Authentication group

Switch to “Explicit Allow”

After all affected user accounts have been identified and are members of the CAPolicy-Exclude-Block-Legacy-Authentication group for the transition period, it is time to start Phase 2.

In this phase, the Conditional Access Policy Temporary Policy: Block legacy authentication rollout is configured to block any user who is not an explicit member of the group. This protects new users immediately and makes it easier to gradually remove users from the exception group.

Add to group

The script from part 4 is a good way to add the users to the group.

You only have to change the file path in line 4 and the group name in line 5.

4
5

$Users = Import-Csv -Path .\Downloads\query_data.csv -Delimiter "," -Encoding UTF8
$TargetGroupName = "CAPolicy-Exclude-Block-Legacy-Authentication"

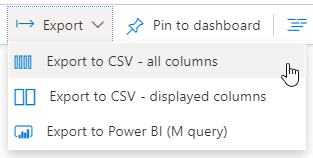

The required CSV files can be created with the above featured Kusto queries and the export function.

Modify the conditional access policy

In the Azure Active Directory portal select “Security” -> “[Conditional Access](https://portal.azure.com/#blade/Microsoft_AAD_IAM/ConditionalAccessBlade/Policies" and then the policy “Temporary Policy: Block legacy authentication Rollout”.

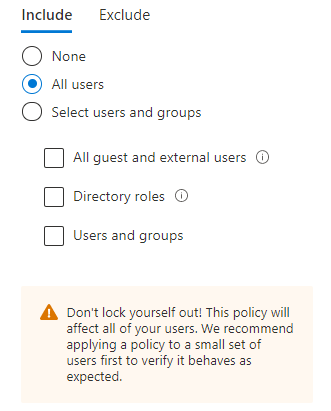

Select “Users and groups” -> “Include” -> “All guest and external users” and check that in the “Exclude” tab the break glass account as well as the group “CAPolicy-Exclude-Block-Legacy-Authentication” is selected.

Then save the conditional access policy.

Next steps

Implementing the above actions will almost certainly take some time.

Meticulously maintain the exceptions group to prevent users from still being on the list even though they no longer use legacy authentication.

Periodically check to see if the total number of users using Legacy Authentication is decreasing. To do this, use the “Conditional Access Insights and Reporting” workbook and filter for the report-only policy “Common policy: Block legacy authentication” and the incorrect login attempts.

In the last part of the series, we’ll look at the finishing touches and the final 1%.

Optional step: Block Exchange ActiveSync Conditional Access Policy

If, as described above, the Exchange ActiveSync client is to be blocked regardless of the exception list, the following Conditional Access Policy must be created.

After creation it is in Report Only mode and has no effect yet. Only when it is activated, the users can no longer use Exchange ActiveSync.

1. Use the Entra ID (Azure AD) portal -> Security -> Conditional Access to create a new policy with the name “Temporary Policy: Block ActiveSync clients”.

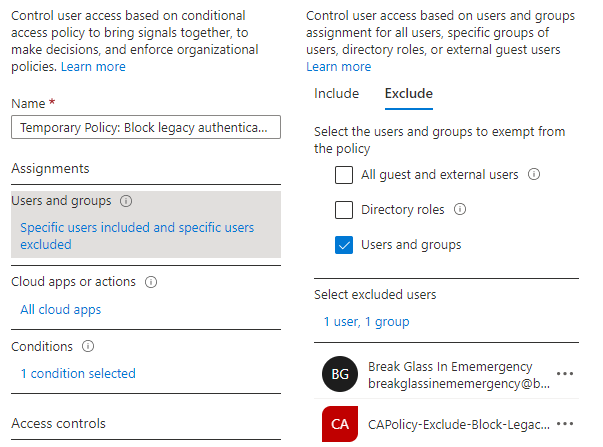

2. Select Assignments -> “Users and groups”

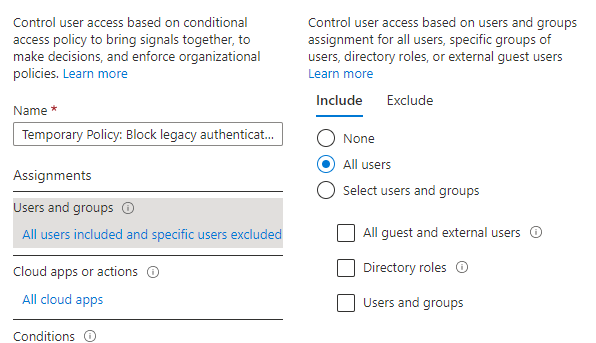

   1. Include: “All users”

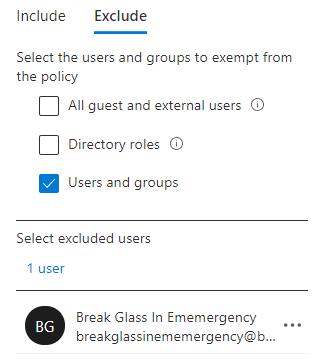

   2. Exclude: Break Glass Account

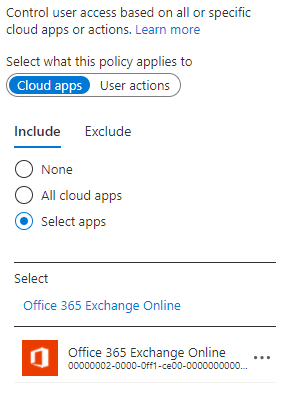

3. Select Assignments -> “Cloud apps or actions” -> “Select apps” -> “Office 365 Exchange Online”

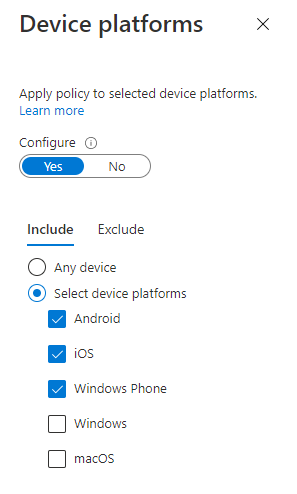

4. Now restrict the policy “Conditions” -> “Device platforms” to “Android”, “iOS”, and “Windows Phone”

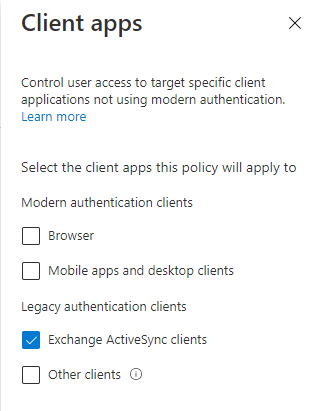

5. For “Conditions” -> “Client apps” chose only the Legacy authentication client “Exchange ActiveSync Clients”

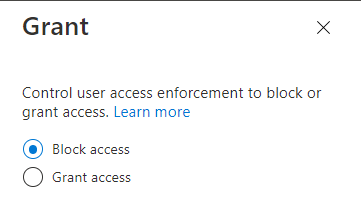

6. “Access controls” -> “Grant” must be “Block access”

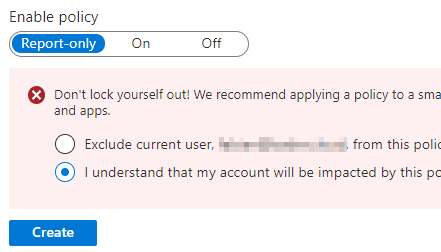

7. Finally, set the policy to “Report-Only” and create it.
   Do not exclude the current user from the policy. This is what the Break Glass account is for and the policy is additionally in the state Report Only.
